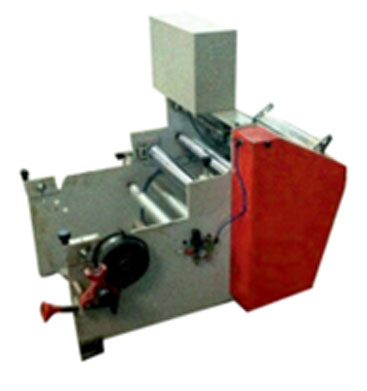

Rewinder Machine / Kitchen Foil Roll Making Machine (Semi-Automatic)

Aluminum House Foil Rewinder Machine – 300 Web-Width

The machine being offered is a semi-auto system- having production range in 9meter length rewinds 2700 numbers per 10 hours. It depends upon operator skills.

The Technical Details for House Foil Rewinder Machine are as follows:

1. Aluminum foil rolls web width –              300 mm Max.
2. Parent Aluminum foil roll at unwind side- 450 mm Max. (110 Kg Max)
3. Parent roll inside Dia.           –    76 mm
4. Tension control at unwind (De-coiler) –              Manual Control
5. Edge Guide           –    Manual
6. Thickness of aluminum foils           –    9 – 20 Micron Max.

Electronic Control Panel – PLC Base

1. 1 HP Motor with AC frequency drive.
2. Pre-setting length counter

3.    Production Program
